InHand Networks EC5350
AI Edge Computer
Eigenschappen
Beschrijving
Verdere informatie
Vergelijkbare producten
Print deze pagina
Prijsaanvraag
Display mijn notities
PDF
Eigenschappen
Beschrijving
Verdere informatie
PDF
- NVIDIA Jetson Orin Nano/NX Series
- High security
- Cloud-Managed
- High reliability

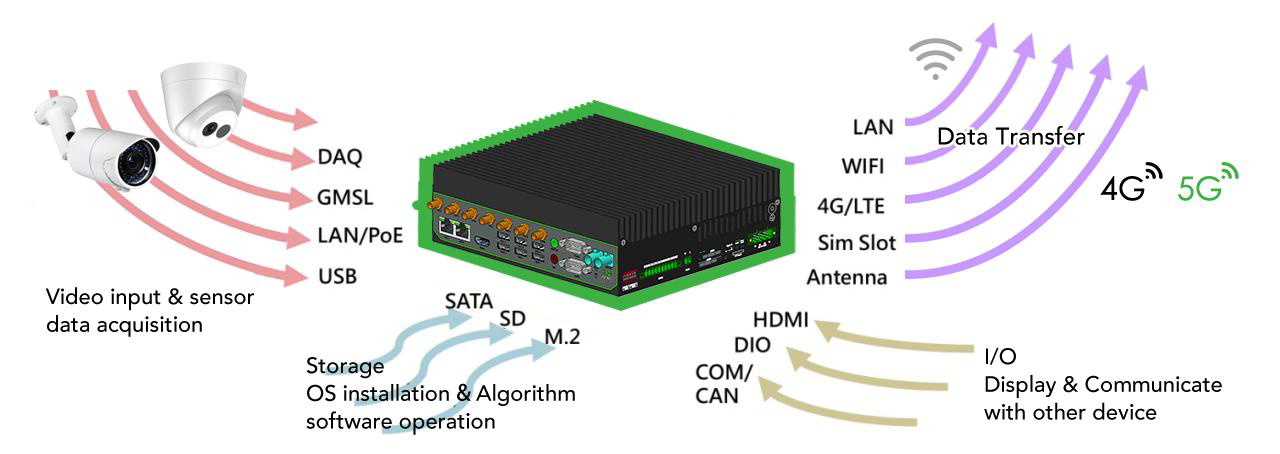

The EC5000 comes pre-integrated with NVIDIA® Jetson Orin NX™ or Orin Nano™, making it ideal for industrial AI applications.The EC5000 design includes 2 Gigabit LAN ports, 1 HDMI video display, 4 DI, 4 DO, 2xRS-232/RS- 422/RS-485, 6 external USB 3.2 ports, 1 internal Micro USB for system recovery, and 1 CAN FD port.EC5000 is highly scalable, with built-in support for LTE/5G through an M.2 B-Key slot, support for Wi-Fi/Bluetooth through an M.2 E-Key slot, support for storage expansion through an M.2 M-Key slot, and 1 Micro SD card slot for storage devices. It also supports DeviceLive Cloud Management.
Feature and Advantage
- Performance and Platform
- Supports NVIDIA Jetson Orin Nano/NX Series
- Optional 67/157TOPS computing power
- Support customers to develop and install edge applications
- Docker
- Jetpack: Above 5.1
- Rich interfaces
- 2x 10/100/1000Mbps Ethernet interface
- 1x HDMI
- 6x USB3.2
- 1 x M.2 B-Key/E-Key/M-Key
- 1x MicroSD
- 2x RS-232/RS-485/RS-422
- I/O, GPS, CAN, MIC, AUDIO
- Stable communication
- 5G/4G/Wi-Fi/GbE, etc
- Wired, cellular, Wi-Fi mutual backup, dual SIM failover
- Independent hardware and software watchdog
- Multilevel link detection, communication self-healing
- Fanless
- High-level security
- Linux system security patches and vulnerability remediation services
- TPM 2.0
- Secure Boot
- DeviceSupervisor™ Agent Service
- Easy to achieve data acquisition onthe cloud
- Integrate 80+ mainstream data acquisition protocols
- Support data preprocessing
- Integrated data publishing services, public/private cloud, local SCADA
- InHand DeviceLive Cloud Service
- Remote device access
- Remote device batch management
- Remote batch management of edge AI applications
- Remote container management
Product Specifications
| Hardware Specifications | |
|---|---|
| Item | EC5350 |
| Hardware Platform | |
| Module Compatibility | NVIDIA Jetson Orin Nano 8G |
| CPU | ARM Cortex-A78AE, 6 cores, TDP up to 15 W, 1.5 GHz |
| GPU | 1024-core NVIDIA Ampere with 32 Tensor Cores |
| AI Performance | 67 TOPS |
| RAM | 8GB |
| Storage | 1 x M.2 NVMe M-Key 2280 (128GB built-in) |
| Interfaces | |
| EtherNet Port | 2 x 10/100/1000Mbps Ethernet port |
| Serial Port | 2 x RS-232/485/422, DB9 |
| I/O | 4 x DI, 4 x DO |
| CAN | 1 x CAN FD |
| GPS | GPS (cellular module support required) |
| USB | 6 x USB 3.2 Gen 2, 1 x OTG Type-C |
| POE | 2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W per Port) |
| HDMI | 1 x HDMI 2.0(Maximum resolution 3840x2160 @ 60Hz) |
| Wi-Fi/BT | RTL8822CE-CG, 802.11b/g/n/ac, BLE 5.0 |
| Expansion Interface | 1 x M.2 B-Key 3042/3052 (LTE/5G) 1 x M.2 E-Key 2230 (Wifi/BT) 1 x M.2 M-Key 2280 (NVMe 128GB built-in) |
| Button | 1 x Recovery Button, 1 x Reset Button |
| SIM Card | 2 x Standard SIM |
| TF Card | Supports Micro SD |
| GMSL | 2-ch GMSL2.0 with FAKRA |
| MIC | 3.5 mm microphone audio jack |
| Audio | 3.5 mm type line-out |
| Security | |
| TPM | Integrated TPM chip, TPM2.0 |
| Mechanical Feature | |
| Installation | DIN rail mounting (default) / Wall mounting (optional) |
| Protection Rating | IP30 |
| Housing | Metal |

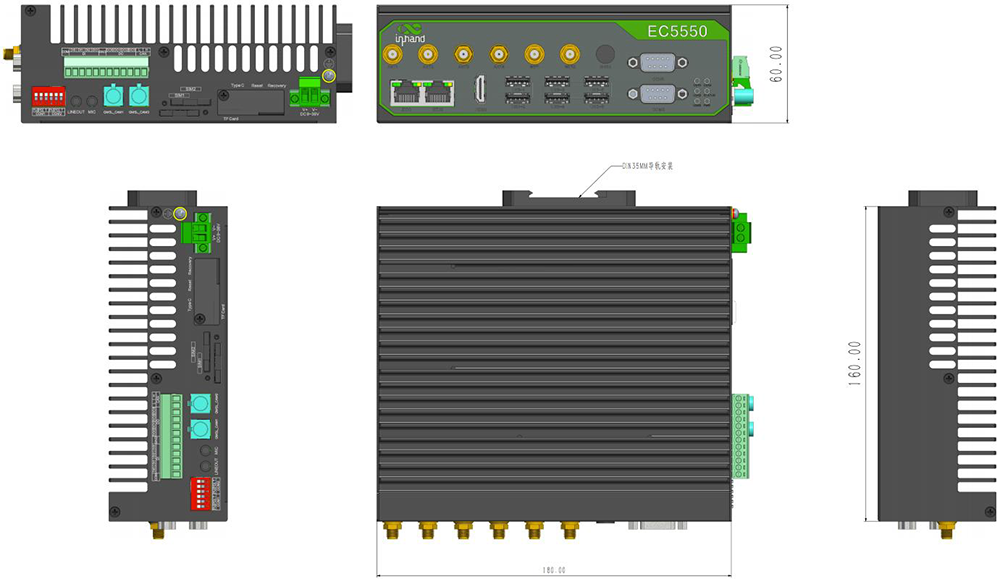

| Dimensions | 180x 160x 60 mm |
| Power Supply | |
| Power Input | DC 9~36V, polarity reversal protection |
| Power Consumption | Idle: 10W, Full Loading: 60 W |
| Ambient Temperature and Humidity | |
| Working Temperature | -20~ 60°C |
| Storage Temperature | -40 ~ 85°C |
| Ambient Humidity | 5 ~ 95% (non-condensing) |
| Indicator | |
| LED | 1 x Power, 1 x Status, 4 x User |
| EMC Index | |
| Electrostatic Discharge | EN61000-4-2, level 3 |
| Radiation RFI Immunity | EN61000-4-3, level 3 |
| Electrical Fast Transients | EN61000-4-4, level 3 |
| Surge | EN61000-4-5, level 3 |
| Conducted RFI | EN61000-4-6 ,level 3 |
| Ring Wave Immunity | EN61000-4-12,level 3 |
| Power Frequency Magnetic Field Resistance | EN61000-4-8, horizontal / vertical 400A/m (>level 2) |
| Physical Features | |
| Shock | IEC60068-2-27 |
| Vibration | IEC60068-2-6 |
| Free Fall | IEC60068-2-32 |
| Software Specifications | |
| Item | EC5000 |
| OS | |
| OS | Linux (Support Jetpack 5.1 above) |
| Network Interconnection | |
| Network Type | 5G, LTE Cat6(Different models for different networks) |
| Reliability | |
| Backup | Dual SIM |
| Link Detection | Multi-Level link detection, auto-redials once disconnected |
| Embedded Watchdog | Device self-diagnosing, auto-recovers from operation faults |
| Data Acquisition Protocol(*DSA) | |
| Industrial Protocol | Modbus RTU Master/Slave, Modbus TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC 3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI |
| Electricity Protocol | DLT645-2007, IEC101/104, DNP3.0, IEC 61850-MMS |
| Other Protocol | BACnet, CNC |
| Maintenance and Management | |
| Upgrade Method | Supports patent upgrade mechanism, local or remote firmware upgrade |
| Log | Support local system logs, remote logs, and important log power-off preservation |
| Remote Management | InHand DeviceLive, HTTP, HTTPS, SSH,etc. |
| DeviceLive Cloud | Supports cloud-based parameter configuration, container management, application and firmware management |
*DSA: The DeviceSupervisor Agent (DSA), developed by InHand Networks, is a cutting-edge intelligence software designed to operate on Edge Computer products. It enables clients to quickly implement data collection, processing, protocol conversion, and cloud connectivity through a "zero code/low code" approach. If you need the DSA application on the EdgeComputer product, please contact us to obtain the DSA software package.
Ordering Guide
| Model | NVIDIA Module | Cellular Type &Frequency Band: |
Memory | Storage | Ethernet Port | Serial Port | GPS |
|---|---|---|---|---|---|---|---|
| EC5550-NRQ3 | Orin NX 16GB | Global 5G NR 5G NR NSA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/ n 48/n66/n71/n77/n78/n79 5G NR SA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/ n 48/n66/n71/n77/n78/n79 LTE FDD: B1/B2/B3/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20 /B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B48 LAA:B46 WCDMA Bands: B1/B2/B3/B4/B5/B6/B8/B19 | 16 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | YES |
| EC5350-NRQ3 | Orin Nano 8GB | Global 5G NR 5G NR NSA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/ n 48/n66/n71/n77/n78/n79 5G NR SA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/ n 48/n66/n71/n77/n78/n79 LTE FDD: B1/B2/B3/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20 /B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B48 LAA:B46 WCDMA Bands: B1/B2/B3/B4/B5/B6/B8/B19 | 8 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | YES |
| EC5550-FQ09 | Orin NX 16GB | Global 4G CAT6 LTE FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 46(LAA)/ 48 (CBRS) | 16 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | YES |
| EC5350-FQ09 | Orin Nano 8GB | Global 4G CAT6 LTE FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 46(LAA)/ 48(CBRS) | 8 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | YES |
| EC5550-EN00 | Orin NX 16GB | No Cellular | 16 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | NO |
| EC5350-EN00 | Orin Nano 8GB | No Cellular | 8 GB | 128 GB | 2x 1000Mbps | 2x RS232/RS485/RS422 configurable | NO |
