S-CONNECT - InHand Networks EC3320

Strong computing capability
High security
Cloud-Managed
High reliability

With technology advancements, demand for local computing is on the rise, especially in manufacturing, security, and healthcare. Traditional cloud solutions may not meet the need for fast processing and data security. InHand Networks offers the EC3320 AI edge computer, delivering high performance, real-time decision-making, and enhanced data privacy for improved efficiency in manufacturing, security, and healthcare.

Feature and Advantage

Performance and Platform

CPU:ARM 4*Cortex-A76 + 4*Cortex-A55? up to2.4GHz
GPU:Mali-G610 MC4
NPU:6TOPS
Compatible with various AI frameworks
Support Hailo-8 M.2 module, up to 26TOPs computing power

Rich interfaces

3x 10/100/1000Mbps Ethernet interface
1x CAN BUS
4x USB3.0
2x RS-232 and 2x RS-485
2x HDMI
4DI+4DO
MIC, SPK

Stable communication

4G/Wi-Fi/GbE, etc
Wired, cellular, Wi-Fi mutual backup, dual SIM failover
Independent hardware and software watchdog
EMC Level 3
Fanless

High-level security

Linux system security patches and vulnerability remediation services
Secure Boot
TPM 2.0

DeviceSupervisor™ Agent Service

Easy to achieve data acquisition on the cloud
Integrate 80+ mainstream data acquisition protocols
Support data preprocessing
Integrated data publishing services, public/private cloud, local SCADA

InHand DeviceLive Cloud Service

Remote device access
Remote device batch management
Remote batch management of edge AI applications
Remote container management

Product Specifications

Hardware Specifications
Item	EC3320
Hardware Platform
CPU	Quad Cortex-A76 + Quad Cortex-A55@ up to2.4GHz
GPU	Quad-core Mali-G610 MC4 high-performance GPU
NPU	Up to 6 TOPS (INT8) Support INT4/INT8/lNT16 mixed operations and framework switching of TensorFlow / MXNet / PyTorch / Caffe
RAM	8GB
FLASH	64GB eMMC
Interfaces
EtherNet Port	3x 10/100/1000Mbps Ethernet port
Serial Port	2x RS-232+2x RS-485, industrial terminal
I/O	10pin industrial green terminal (4IN, 4OUT, 2GND)
CAN	1x CAN 2.0
Wi-Fi	STA, 802.11ac/a/b/g/n, 2.4G/5G dual band
Bluetooth	BLE 5.0
GPS	GPS (cellular module support required)
USB	4x USB 3.0
HDMI	2x HDMI 2.0
Expansion Interface	1x M.2(Supports SATA3.0 SSD, supports 2242 size) 1x M.2(Supports Hailo-8 M.2 module, up to 26TOPs computing power)
Power Button	1x Power, 1x Reset
SIM Card	2x Nano SIM Slot
MIC	1x MIC
SPK	1x SPeaker
Security
TPM (Optional)	Integrated TPM chip, TPM2.0
Mechanical Feature
Installation	DIN-rail, wall mounting
Protection Rating	IP40

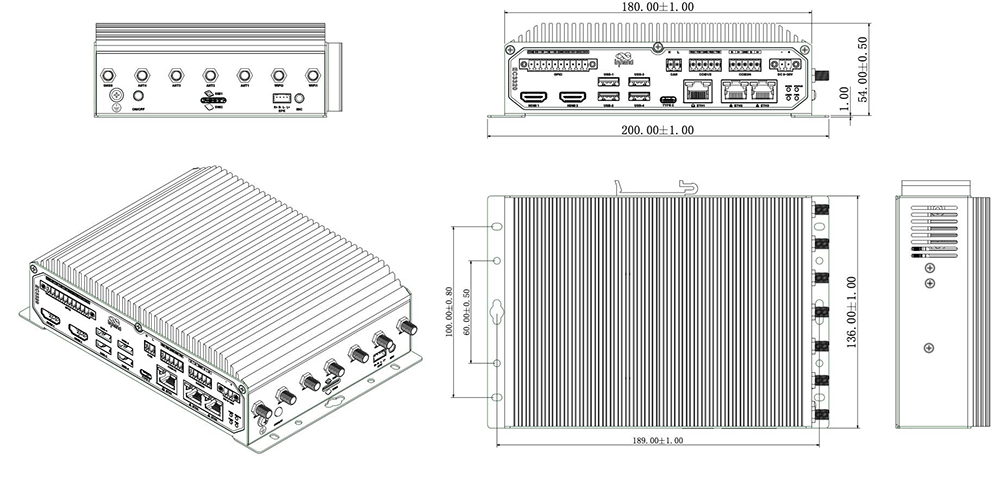

Dimensions	180x 136x 54mm
Housing	Metal
Power Supply
Power Input	9~36V DC-input (2pin green industrial terminal, with flange)
Power Interface	Industrial terminal block
Ambient Temperature and Humidity
Working Temperature	-20~ 60°C
Storage Temperature	-40 ~ 85°C
Ambient Humidity	5 ~ 95% (non-condensing)
Indicator
Power	Power supply indicator light, always on after power on;
Status	The status indicator light flashes during normal operation;
4G	4G connection indicator light is always on when connected normally;
USER	User-definable
EMC Index
Electrostatic Discharge	EN61000-4-2, level 3
Radiation RFI Immunity	EN61000-4-3, level 3
Electrical Fast Transients	EN61000-4-4, level 3
Surge	EN61000-4-5, level 3
Conducted RFI	EN61000-4-6 ,level 3
Ring Wave Immunity	EN61000-4-12,level 3
Power Frequency Magnetic Field Resistance	EN61000-4-8, horizontal / vertical 400A/m (>level 2)
Physical Features
Shock	IEC60068-2-27
Vibration	IEC60068-2-6
Free Fall	IEC60068-2-32
Software Specifications
Item	EC3320
OS
OS	Linux
Network Interconnection
Network Type	5G NR, LTE Cat6(Different models for different networks)
Security
Secure Boot	Support
Reliability
Backup	Dual SIM
Link Detection	Multi-Level link detection, auto-redials once disconnected
Embedded Watchdog	Device self-diagnosing, auto-recovers from operation faults
*Data Acquisition Protocol(DSA)**
Industrial Protocol	Modbus RTU Master/Slave, Modbus TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI
Electricity Protocol	DLT645-2007, IEC101/104, DNP3.0
Other Protocol	BACnet, CNC
Maintenance and Management
Upgrade Method	Supports patent upgrade mechanism, local or remote firmware upgrade
Log	Support local system logs, remote logs,
Remote Management	InHand DeviceLive, HTTP, HTTPS, SSH,etc.
DeviceLive Cloud	Supports cloud-based parameter configuration, container management, application and firmware management

*DSA: The DeviceSupervisor Agent (DSA), developed by InHand Networks, is a cutting-edge intelligence software designed to operate on Edge Computer products. It enables clients to quickly implement data collection, processing, protocol conversion, and cloud connectivity through a "zero code/low code" approach. If you need the DSA application on the EdgeComputer product, please visit the official website to obtain the DSA software package

Base Model

Model	Cellular Type &Frequency Band:	Memory	Storage	Ethernet Port	Serial Port	Wi-Fi/BT/CAN/ MIC/SPK/DI/DO	GPS
EC3320-NRQ3	Gloable 5G NR 5G NR NSA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48/n66/n71/n77/n78/n79 5G NR SA : n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48/n66/n71/n77/n78/n79 LTE FDD: B1/B2/B3/B5/B7/B8/B12(B17)/B13/B14/ B18/B19/B20/B25/B26/B28/B29/B30/ B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B48 LAA:B46 WCDMA Bands: B1/B2/B3/B4/B5/B6/B8/B19	8 GB	64 GB	3x1000Mbps	2x RS232 +: 2x RS485	YES	YES
EC3320-FQ09	Gloable 4G CAT6 LTE FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 46(LAA)/ 48 (CBRS)	8 GB	64 GB	3x1000Mbps	2x RS232 +: 2x RS485	YES	YES
EC3320-EN00	No Cellular	8 GB	64 GB	3x1000Mbps	2x RS232 + : 2x RS485	YES	NO

Hailo AI Module(Optional)

[XY]
P/N Code	Feature
-	None
H8	Hailo-8, M.2 Key B+M 2280

InHand Networks EC3320 Datasheet (2060.1 kB)
