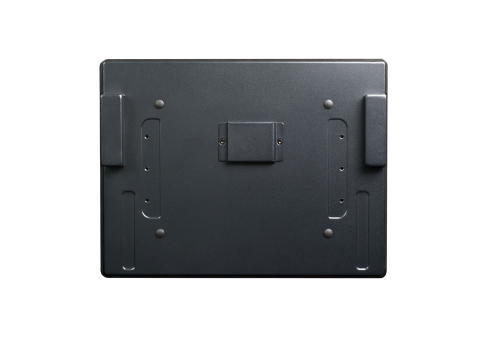

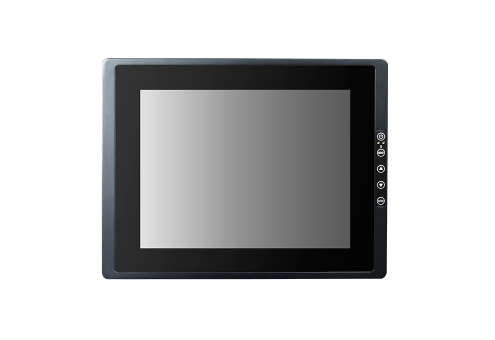

C&T Solution VIO-112R

12.1" XGA Resistive Touch Panel PC with Intel® Core™ i5/i3 or Celeron® Processor with 2x 5W speaker

C&T Solution VIO-112R
  • EigenschappenEigenschappen
  • BeschrijvingBeschrijving
  • Verdere informatieVerdere informatie
  • PDFPDF
  • 12.1” TFT XGA 4:3 LCD with Resistive 5-wire Touch
  • 5th Gen. Intel® Core™ i5 / i3 or Celeron® Processor
  • -10°C to 60°C extended operating temperature
  • Designed with Aluminum Die-Casting Front Frame
  • IP65 Compliant Front Panel
  • Two 5W Internal Speakers Built-in
  • Multi-language OSD built-in
The CV-100 series display module features with resistive 5-wire or projected capacitive touch screen, flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. By supporting Multi-Mode Display Module (MDM) technology, enabling CV-100 series monitor module to configure, upgrade and maintain easily.

Model Display | Processor Expansion Features
VIO-112R/PC300 12.1" (4:3), Resistive 5-wire Touch, Standard Frame, Broadwell-U - 5th Gen. Intel® Core™ i5 / i3 or Celeron® Processor 2x Mini PCIe Multi-language OSD, IP65, Aluminum Die-Casting Front Frame, Wide Temp., Wide Voltage
VIO-112R/PC311P 12.1" (4:3), Resistive 5-wire Touch, Standard Frame, Broadwell-U - 5th Gen. Intel® Core™ i5 / i3 or Celeron® Processor 2x Mini PCIe + 1x Expansion (PCI) Multi-language OSD, IP65, Aluminum Die-Casting Front Frame, Wide Temp., Wide Voltage
VIO-112R/PC311E 12.1" (4:3), Resistive 5-wire Touch, Standard Frame, Broadwell-U - 5th Gen. Intel® Core™ i5 / i3 or Celeron® Processor 2x Mini PCIe + 1x Expansion (PCIe x4) Multi-language OSD, IP65, Aluminum Die-Casting Front Frame, Wide Temp., Wide Voltage
VIO-112R/PC400 12.1" (4:3), Resistive 5-wire Touch, Standard Frame, Kabylake-U - 7th Gen. Intel® Core™ i5 / i3 Processor 2x Mini PCIe Multi-language OSD, IP65, Aluminum Die-Casting Front Frame, Wide Temp., Wide Voltage
VIO-112R/PC410 12.1" (4:3), Resistive 5-wire Touch, Standard Frame, Kabylake-U - 7th Gen. Intel® Core™ i5 / i3 Processor 2x Mini PCIe Multi-language OSD, IP65, Aluminum Die-Casting Front Frame, Wide Temp., Wide Voltage



The VIO-100/PC300 and VIO-200/PC300 series Capacitive Touch Panel PC features the unique mechanical design unifies connections from form factor and fixation to ensure seamless hardware integration. These technologies together offer possibilities for changing the display size of a system, upgrading the computing performance and the I/O connectivity depending entirely on the requirements of the application.
ProdGrafik

Display

    LCD Size
    12.1" (4:3)

    Max. Resolution
    1024 x 768

    Brightness (cd/m2)
    500

    Contrast Ratio
    700:1

    LCD Color
    16.2M

    Pixel Pitch (mm)
    0.24 (H) x 0.24 (V)

    Viewing Angle (H-V)
    160 / 160

    Backlight MTBF
    50000 hrs (LED Backlight)



I/O

    Internal Speaker
    AMP 5W + 5W

    OSD
    LCD On/Off, Auto, Menu, Up and Down
    Multi-language



Touch

    Touch Type
    Resistive 5-wire Touch



Environment

    Operating Temp.
    -10°C to 60°C

    Storage Temp.
    -30°C to 80°C

    Relative Humidity
    10% to 95% (non-condensing)

    IP Level
    IP 65 Compliant Front Panel



Physical

    Front Panel Construction
    Die-cast Flat Surface

    Dimension (WxDxH)
    338 x 262 x 41.7mm

    Weight
    TBC

    Mounting
    Panel Mounting
    Wall / VESA Mounting (Optional)




ORDERING INFORMATION
Available Models
VIO-112R/PC300-5350U 12.1” XGA Resestive Touch Panel PC with Intel® i5-5350U Processor
VIO-112R/PC300-5010U 12.1" XGA Resistive Touch Panel PC with Intel® i3-5010U Processor
VIO-112R/PC300-3765U 12.1” XGA Resestive Touch Panel PC with Intel® Celeron® 3765U Processor
VIO-112R/PC311P-5350U 12.1” XGA Resestive Touch Panel PC with Intel® i5-5350U Processor, 1x PCI Expansion
VIO-112R/PC311P-5010U 12.1" XGA Resistive Touch Panel PC with Intel® i3-5010U Processor, 1x PCI Expansion
VIO-112R/PC311P-3765U 12.1” XGA Resestive Touch Panel PC with Intel® Celeron® 3765U Processor, 1x PCI Expansion
VIO-112R/PC311E-5350U 12.1” XGA Resestive Touch Panel PC with Intel® i5-5350U Processor, 1x PCIe x4 Expansion
VIO-112R/PC311E-5010U 12.1" XGA Resistive Touch Panel PC with Intel® i3-5010U Processor, 1x PCIe x4 Expansion
VIO-112R/PC311E-3765U 12.1” XGA Resestive Touch Panel PC with Intel® Celeron® 3765U Processor, 1x PCIe x4 Expansion
VIO-112R/PC400-7300U 12.1" XGA Resistive Touch Panel PC with Intel® Core™ i5-7300U Processor
VIO-112R/PC400-7100U 12.1" XGA Resistive Touch Panel PC with Intel® Core™ i3-7100U Processor
VIO-112R/PC410-7300U 12.1" XGA Resistive Touch Panel PC with Intel® Core™ i5-7300U Processor,
2x Universal I/O Bracket
VIO-112R/PC410-7100U 12.1" XGA Resistive Touch Panel PC with Intel® Core™ i3-7100U Processor,
2x Universal I/O Bracket
Optional Accessories
1-E09A06007 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022 Power Cord, 3-pin US Type, 180cm
1-TPCD00002 Power Cord, European Type, 180cm
1-TPCD00001 Power Cord, 3-pin UK Type, 180cm



Packing List

  • 1x VIO-112/PC300 Series Panel PC
  • 10x Panel Mount Kit
  • 1x Utility DVD Driver
  • 1x Screw Pack
